Dahua

SD6AL445GB-HNV-IR

Ürün Kodu : SD6AL445GB-HNV-IR

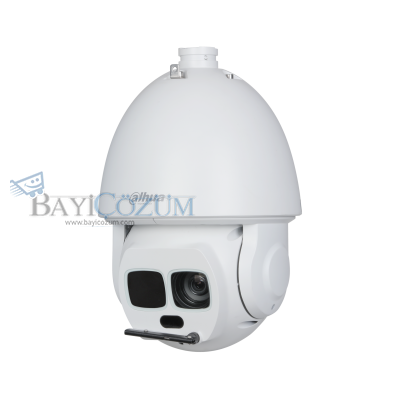

4MP 45x Starlight IR Network PTZ Camera
1/2.8" 4Megapixel STARVIS™ CMOS.
45x optical zoom.
Starlight technology.
Max. 25/30 fps@2560 × 1440.
IR distance up to 300 m.
Auto tracking 3.0.
Perimeter protection.
Face detection.
Video Metadata.
SMD 4.0.
IP67




  • Ürün Özellikleri
  • Tavsiye Et
  • Resimler
  • Döküman
  • Camera

    Image Sensor

    1/2.8" CMOS

    Pixel

    4 MP

    Max. Resolution

    2560 (H) × 1440 (V)

    ROM

    4 GB

    RAM

    1 GB

    Electronic Shutter Speed

    1 s–1/30,000 s

    Scanning System

    Progressive

    Min. Illumination

    Color: 0.005 lux@F1.6
    B/W: 0.0005 lux@F1.6
    0 lux (IR/laser light on)

    Illumination Distance

    300 m (984.25 ft)

    Illuminator On/Off Control

    Zoom prio; Manual; Auto; Off

    Illuminator Number

    7 (IR)

    Wiper

    Wiper

    Lens

    Focal Length

    3.95 mm–177.7 mm

    Max. Aperture

    F1.6–F4.95

    Field of View

    H: 63.2°–1.8°; V: 37.6°–1.1°; D: 70.8°–2.1°

    Optical Zoom

    45×

    Focus Control

    Auto; semi-auto; manual

    Close Focus Distance

    0.1 m–1 m (0.33 ft–3.28 ft)

    Iris Control

    Auto; manual; iris prio

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    3,555 m (11,663.39 ft)

    1,404.2 m (4,606.96 ft)

    711 m (2,332.68 ft)

    355.5 m (1,166.34 ft)

    PTZ

    Pan/Tilt Range

    Pan: 0° to 360° endless
    Tilt: –20° to +90°, auto flip 180°

    Manual Control Speed

    Pan: 0.1°/s–200°/s
    Tilt: 0.1°/s–120°/s

    Preset Speed

    Pan: 240°/s; Tilt: 200°/s

    Preset

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5

    Scan

    5

    Power-off Memory

    Yes

    Idle Motion

    Pattern; Preset; Scan; Tour

    PTZ Protocol

    DH-SD
    Pelco-P/D (Auto recognition)

    Intelligence

    Video Metadata

    Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots. Attribute extraction of motor vehicle is also supported, where 10 attributes can be detected

    IVS (Perimeter Protection)

    Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

    Face Detection

    Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots

    Auto Tracking

    Yes

    SMD

    SMD4.0

    Quick Pick

    Yes

    Video

    Video Compression

    H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

    Streaming Capability

    3 streams

    Resolution

    4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Video Frame Rate

    Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps)
    Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
    Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 96 kbps–14,848 kbps
    H.265: 38 kbps–8,960 kbps

    Day/Night

    Color; B/W; Auto; Electronic

    BLC

    Yes

    WDR

    120 dB

    HLC

    Yes

    White Balance

    Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

    Gain Control

    Auto; manual; gain prio

    Noise Reduction

    2D NR; 3D NR

    Motion Detection

    Yes

    Region of Interest (RoI)

    Yes

    Image Stabilization

    EIS

    Defog

    Electronic

    Digital Zoom

    16×

    Image Rotation

    180°

    Privacy Masking

    Up to 24 areas can be set, with up to 8 areas in the same view;
    multiple colors available

    S/N Ratio

    ≥ 55 dB

    Audio

    Audio Compression

    PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    Network Protocol

    FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

    Interoperability

    CGI; SDK; ONVIF (Profile S&G&T)

    Streaming Method

    Unicast/Multicast

    User/Host

    20 (total bandwidth: 64 M)

    Storage

    Micro SD card (512 GB); FTP/SFTP; NAS

    Browser

    IE 9 and later versions
    Chrome 41 and later versions
    Firefox 52 and later versions
    Safari 10 and later versions

    Management Software

    DMSS;DSS Pro

    Mobile Client

    iOS;Android

    Certification

    Certifications

    CE: E234884-A6503-IT-1 and 4789976478-2.4-1
    FCC: 4790130386-1

    Port

    Alarm I/O

    7/2

    Audio I/O

    1/1

    RS-485

    1 (baud rate: 1200 bps–115200 bps)

    Audio Input

    1 channel (LINE IN, bare wire)

    Audio Output

    1 channel (LINE OUT,bare wire)

    Alarm Linkage

    Capture; Recording; send email; preset; tour; pattern; alarm digital input

    Alarm Event

    Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

    Power

    Power Supply

    36 VDC, 2.23 A ± 25%
    HI-PoE

    Power Consumption

    Basic: 13 W
    Max: 27 W (illuminator+PTZ)

    Environment

    Operating Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Operating Humidity

    ≤ 95%

    Protection

    TVS 6000 V lightning proof; surge protecton; voltage

    transient protecton; IP67

    Structure

    Product Dimensions

    382 mm × Φ239.8 mm (15.04" × Φ9.44")

    Net Weight

    6.8 kg (14.99 lb)

    Gross Weight

    9.2 kg (20.28 lb)
