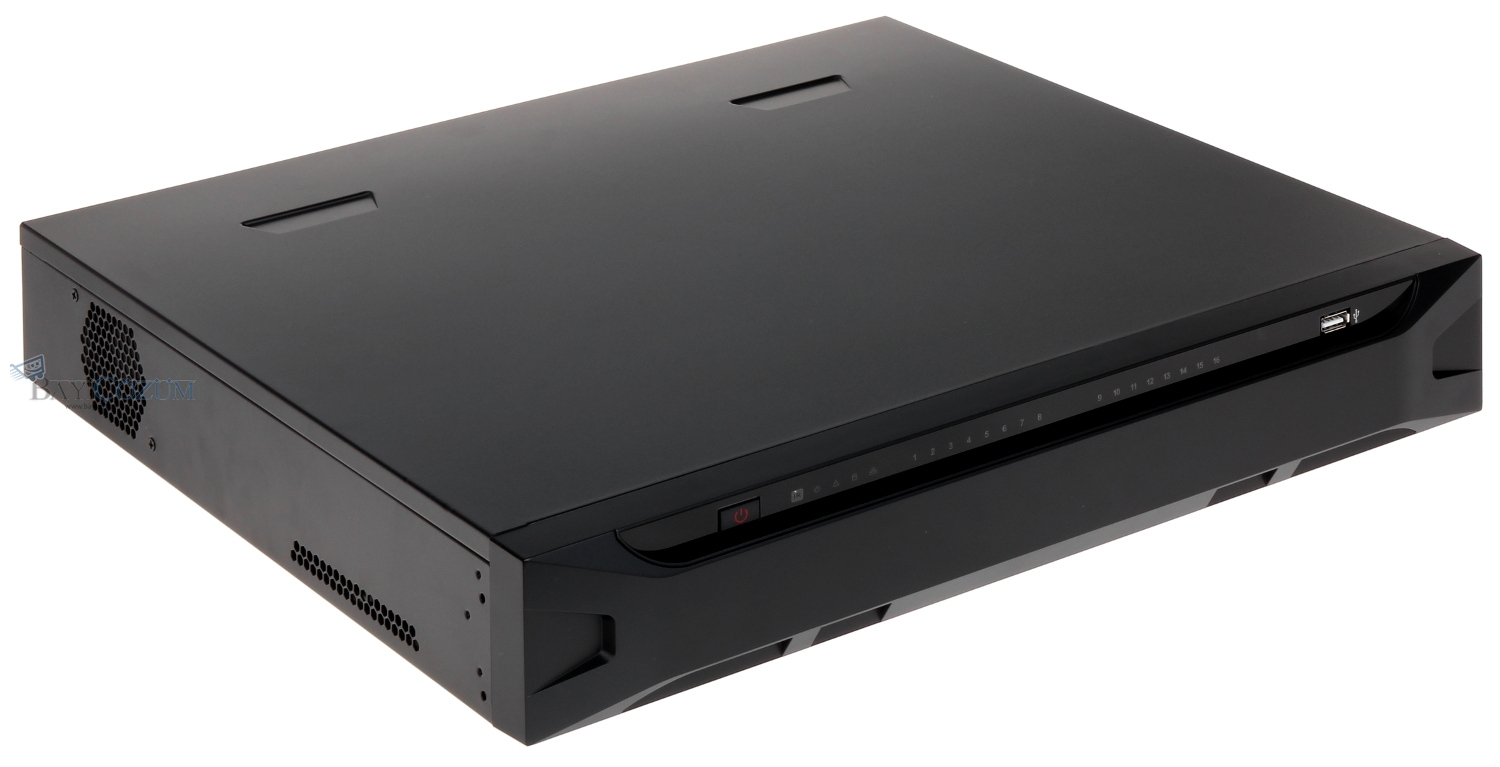

NVD0905DH-4I-4K
Ultra-HD Network Video Decoder - wall unit
12M/9ch@4K /14CH@500M/36ch@1080P /
9 HDMI outputs, 2×HDMI/2×DVI-I inputs
- Ürün Özellikleri
- Tavsiye Et
- Resimler
- Döküman
-
NVD0905DH-4I-4K
Ultra-HD Network Video Decoder
> Designed for standalone operator viewers
> H.265+/H.265/H.264/MJPEG/MPEG4/MPEG2 video decoding
> Ultra-high decoding ability, up to 12MP
> 2ch HDMI and 2ch DVI-I input, 9ch HDMI output
> Support 1/4/9/16 display split
> Support audio, alarm, bi-directional talk, RS485
> Splicing screens control for zoom/merge/roam/overlay
System
Processor
Embedded processor
Operating System
LINUX
Performance
Video Format
MPEG2/MPEG4/H.264/H.265/H.265+/MJPEG
Audio Format
PCM/G711/AAC
Decoding Capacity Separately
Port 1,2,3
Port 4,5,6
Port 7,8,9
3CH@12MP/4CH@4K/16CH@1080P/36CH@720P/48CH@D1
3CH@12MP/4CH@4K/16CH@1080P/36CH@720P/48CH@D1
3CH@12MP/4CH@4K/16CH@1080P/36CH@720P/48CH@D1
Total Video Decoding
9CH@12MP/12CH@4K/48CH@1080P/108CH@720P/144CH@D1
Decoding Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF
Video Output
9ch HDMI
Display Resolution
3840×2160/2560×1600/1920×1080/1280×1024/1280×720/1024×768, only 6 ports support 3840×2160, the remaining 3 ports support 2560×1600
Audio Output
9ch HDMI
Communication Interface
2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)
Alarm Input
4ch
Alarm Output
4ch relay out (30VDC 1A, 125VAC, 0.5A)
Others
Power Supply
AC100-240V, 50Hz-60Hz
Power Consumption
≤70W
Working Temperature
-10 °C to +55 °C (14 °F to 131 °F)
Working Humidity
10~90%RH / 86~106kpa
Unit Dimension
1.5U, 440×408×70mm(17.32 × 16.06 × 2.76 inch), (W*D*H)
Weight
4.83kg(10.65 lb)
