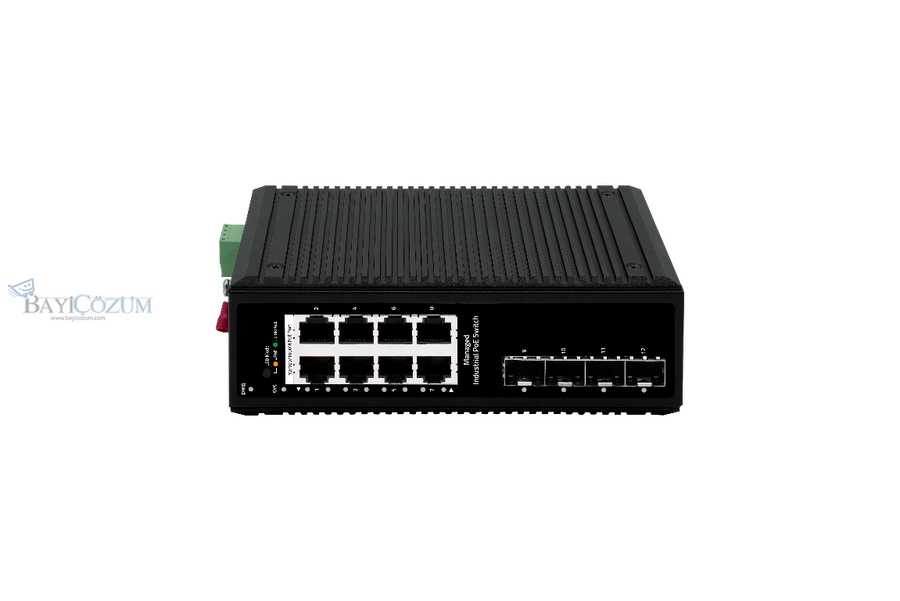

ISW5100-8GT4GP-POE- UNV Endüstriyel 8 Port Poe Switch

Model

ISW5100-8GT4GP-POE-IN

Gigabit Industrial Managed PoE Switch

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x,

IEEE 802.1d, IEEE 802.1w,

Interface

8*10/100/1000Mbps RJ45 PoE Ports

4*1000Mbps SFP Slots

1 Console Port

MAC Address Table

8K

Packet Buffer

4.1M bit

Transfer Mode

Store-and-forward

Packet Forward Speed

17.85Mpps

Switching Capacity

24Gbps

Dimensions(L*W*H)

164*107*51mm

Fan Quantity

Fanless

PoE Power Budget

According to the adapter

PoE Port

Port 1~8

PoE Power Output

30W（MAX for single port）

POE Standard

IEEE 802.3af, IEEE 802.3at

Input Power Supply

DC12~55V

DC48~55V  (PoE)

Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)

Mainboard Power Consumption

15W

Operating Temperature

-40°C to 75 °C

Storage Temperature

-40 °C ~ 85 °C

Operating Humidity

10% ~ 95% non-condensing

Storage Humidity

5% ~ 95% non-condensing

Indicator

PWR Green LED

On: Powered on

Off: Powered off

SYS Green LED

Flashing: System startup in progress

On: System startup completed

Ports 1-8 Green LED

Slow Flashing: 10/100/1000Mbps Link normal

Off: Link blocked

Fast Flashing: Data transmitting

POE Yellow LED

On: PoE powered on

Off: PoE powered off

Ports G9-G12 Green LED

On: 10/100/1000Mbps Link normal

Off: Link blocked

Flashing: Data transmitting

LED Mode Button&Reset

Dual color LED selection: default green (link data), switch yellow LED(PoE)

Long press for 6 seconds to restore factory settings

Installation

Desktop, Wall mounting installation, Rail installation

Surge Protection

Port Surge: Common mode 6KV, Differential mode 2KV (Class B)

Electrostatic ESD: Air 8KV, Contact 6KV (Class B)

Model

ISW5100-8GT4GP-POE-IN

IPv4

IPv4 VLAN Interface

IPv4 Static Routes

ARP

IPv6

IPv6 VLAN Interface

IPv6 Static Routes

IPv6 ND

Port

Port Switch configuration

Port Description configuration

Port Speed configuration

Port Duplex configuration

Port Flow Control configuration

Jumbo Frame

EEE

Fiber Module(DDM)

Link Aggregation

Support load balance policy; Base on MAC and IP-MAC

Static and Dynamic Group

Up to 8 groups

Support LACP

Storm Control

Boardcast suppression

Unknown Multicast

Unknown Unicast

Port Mirroring

One to one monitor

Many to one monitor

Ingress/Egress/Both

Up to 4 session groups

Port Security

MAC Address Constraints

Port Security MAC Address

Protect/Restrict/Shutdown

Port Isolation

Support

Port Rate-limit

Support

Loopback Detection

Support

VLAN

Access/Trunk/Hybrid

VLAN Tunnel (Q-in-Q Tunnel)

VLAN range 1-4094, maximum active VLAN is 4K

Voice VLAN

MAC VLAN

Surveillance VLAN

Protocol VLAN

GVRP

MAC Address

Dynamic MAC address

Static MAC address

Filtering MAC Address

Spanning Tree Protocol

STP/RSTP/MSTP

BPDU Filter

BPDU Guard

Edge Port

LLDP

LLDP

LLDP MED

Multicast

IGMP Snooping

IGMP V1/V2/V3

Router Port

Static IGMP group address

IGMP groups filtering

Querier

MLD Snooping

MVR

QoS

Traffic classification based, Strict priority and WRR

Port Priority

802.1P Priority

IP TOS Priority

IP DSCP Priority

Support up to 8 queues per port

Priority Remarking

ERPS

Only SFP port

DHCP

DHCP Server

IP Pool

Static Binding

Option 43

DHCP Relay

Access Protocol

HTTP

HTTPS

Telnet

SSHv2

Manager ACL

Session Timeout

Password Retry Count

Silent Time

AAA

RADIUS

TACACS+

802.1X

Base on port/MAC/local/WEB

DHCP Snooping

Global/VLAN

Option 82

Circuit ID

IP Source Guard

Support

Dynamic ARP Inspection

Support

DoS

Support

ACL

MAC ACL

IPv4 ACL

IPv6 ACL

Syslog

Logging Message

Remote Server

Ping

Support

Traceroute

Support

Copper Test

Support

UDLD

Support

Port Statistics

Support

Manager Access

Console

HTTP/HTTPS

Telnet

SSH

SNMP

Manager IP

Static Address

DHCP Client

Support IPv4 and IPv6 address

Manager VLAN

DNS

Time Synchronization

SNTP

Manual Time

SNMP

V1/V2C/V3

Community

V3 User

Group

Trap Host

SNMP MIB

RFC 1213 MIB-II

RFC 1493 Bridge MIB

RFC 1643 Ethernet MIB

RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)

RFC 2863 Interface MIB

LLDP

Private MIB

Firmware Management

Firmware upgrade

Configuration Management

Upload and download

Save

Support

Restart

Support

Factory Defaults

Support
