IPMECS-2201C-IR

Name: IPMECS-2201C-IR
Brand: Dahua
SKU: T1322
Availability: OutOfStock

Ürün Kodu : IPMECS-2201C-IR

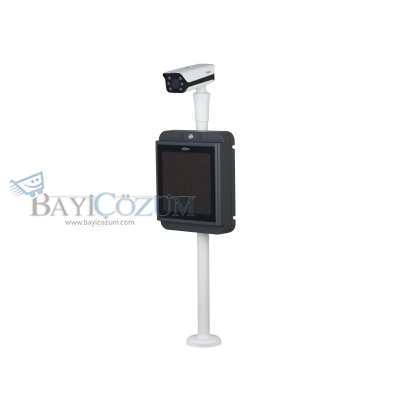

Plaka Okuma Kamerası - Access ANPR Kit
Araç bilgilerinin 7/24 derinlemesine çıkarılması ve analizi için
yüksek performanslı CMOS görüntü sensörünü ve işlemciyi kullanır.
Plakası olmayan araçların ve araç modelinin, araç logosunun, araç serisinin,
araç renginin ve daha fazlasının doğru tanınması için derin öğrenme algoritması
Tek ağ bağlantı noktası ve ANPR kamera, LED aydınlatıcılar ve LED
ekranın entegrasyonu, kurulumu ve dağıtımı kolaylaştırır.
LED ekranda gösterilen bilgiler özelleştirilebilir
İki yönlü ses ve ses yayınını destekler, gözetimsiz park etme çözümü için idealdir
Çelik kasa ve elektroforez işlemi, çekici bir görünüm sağlar ve dayanıklıdır.

Ürün Özellikleri
Tavsiye Et
Resimler
Döküman

IPMECS-2201C-(IR)

Access ANPR Kit

> Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7

> Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more

> Single network port and integration of ANPR camera, LED illuminators, and LED display facilitate installation and deployment

> Information shown on the LED display can be customized

> Supports two-way audio and voice broadcasting, ideal for unattended parking solution

> Steel casing and electrophoresis process bring attractive appearance and allow durable performance

Basic

Display Type

64 × 64 (4 lines, 8 letters each line, red and green colors display)

Display Size

304 mm × 304 mm (11.97'' × 11.97'') (W × H)

Pixel Composition

1R1PG

Display Resolution

4096 dots (64 × 64), pixel pitch: 4.75 mm (0.19'')

Display Lifespan

100,000 hours

Illuminator Number

6 IR illuminators, brightness adjustable

Image Sensor

1/2.8'' CMOS

Image Resolution

1920 × 1080 (OSD black strip excluded)

Video Resolution

Main stream: 1080P (1920 × 1080)/720P (1280 × 720)
Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate

H.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps

Video Compression

H.264B/H.264M/H.264H/H.265/MJPEG

Picture Encoding Format

JPEG

Noise Reduction

3DNR

White Balance

Full auto, auto color temperature range, customized color temperature

Electronic Shutter Speed

1/50–1/10000, auto or manual

WDR

96 db

Edge Enhancement

Yes

Exposure Mode

Full auto, customized auto, customized

Iris Control

Auto iris (W:1.6–T:3.3)

Performance

Trigger Mode

Video detection; I/O coil; video detection and I/O coil

Shutter

Single shutter

Storage

1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G

Image Tampering Prevention

Yes. Video/picture can be checked through watermark and verification

Audio

Yes. Supports two-way audio and voice broadcasting

Field of View

Horizontal: 108.1° (W)–30.3° (T);

Vertical: 56.3° (W)–17.1° (T);

Diagonal: 130.9° (W)–34.8° (T)

Illumination Distance

12 m (39.37 ft)

Capture Range

3 m–6 m (9.84 ft–19.69 ft)

Detected Lane Width

3 m –4 m (9.84 ft–13.12 ft)

Min Ambient Illuminance

0.002 Lux. Illuminator is designed with the camera for illumination

Max Speed that the Camera Detects

30 km/h

Alarm Event

Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Automatic Network Replenishment (ANR)

Yes. Platform/FTP

Auto Registration

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥99%

Vehicle Recognition

Supports recognizing vehicle model, vehicle logo, vehicle series, vehicle color, features of driver and front-seat passenger, license plate, and vehicle without plate. License plate recognition rate ≥95%

Video Metadata

Yes

Intelligent Track Frame

Intelligent frame display. Supports displaying vehicle plate and vehicle movement track

Port

Lens Mount

Φ14

Analog Output

Network

1 100/1000M Ethernet port (RJ-45)

RS-485

RS-232
