Dahua

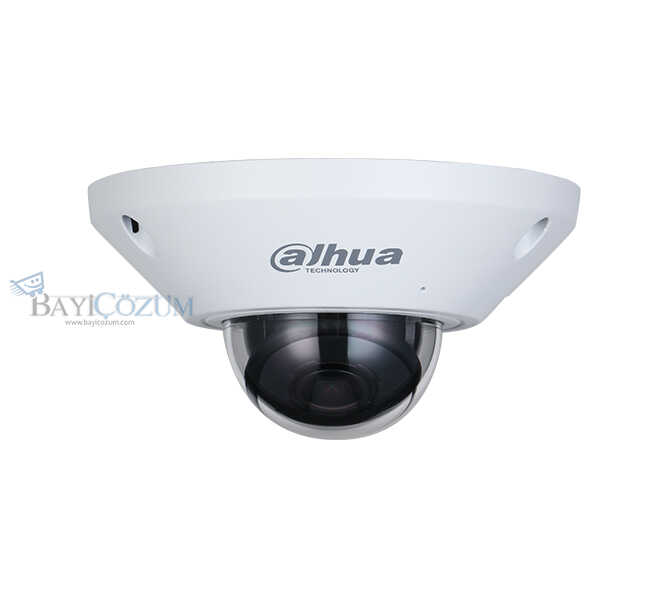

IPC-EB5541-AS

Ürün Kodu : IPC-EB5541-AS
5MP WizMind Fisheye Ağ KAMERASI
  • Ürün Özellikleri
  • Tavsiye Et
  • Resimler
  • Döküman
  • > 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

    > Outputs max. 5MP (2592 × 1944) @25/30 fps

    > H.265 codec, high compression rate, ultra-low bit rate

    > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

    > 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

    > Intelligent detection: Intrusion, tripwire, people counting in area

    > Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

    > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic

    > 12V DC/PoE power supply, easy for installation

    > IP67, IK10 protection

    > Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.

    Camera

    Image Sensor

    1/2.7”5Megapixel progressive CMOS

    Max. Resolution

    2592 (H) × 1944 (V)

    ROM

    128 MB

    RAM

    512 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.006 Lux @F2.0

    S/N Ratio

    56 dB

    Pan/Tilt/Rotation Range

    Pan: 0°–355°
    Tilt: 0°–55°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    1.4 mm

    Max. Aperture

    F2.0

    Field of View

    Horizontal: 180°
    Vertical: 180°
    Diagonal: 180°

    Iris Type

    Fixed

    Close Focus Distance

    0.2 m (0.7 ft)

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    28 m

    (91.9 ft)

    11.2 m

    (36.7 ft)

    5.6 m

    (18.4 ft)

    2.8 m

    (9.2 ft)

    Smart Event

    Heat Map

    Yes

    Professional, intelligent

    IVS (Perimeter Protection)

    Tripwire; intrusion

    People Counting

    Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas

    Intelligent Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+/ Smart H.264+

    Video Frame Rate

    Main stream (2592 × 1944 @1–25/30 fps)
    sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps)
    third stream (1280 × 720 @1–25/30 fps)

    Stream Capability

    3 streams

    Resolution

    5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 3 kbps–8192 kbps
    H.265: 3 kbps–8192 kbps

    Day/Night

    Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    Scene Self-adaptation

    Yes

    White Balance

    Auto/natural/street lamp/outdoor/manual/regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D DNR

    Motion Detection

    OFF/ON (4 areas)

    Region of Interest (RoI)

    Yes (4 areas)

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    PCM; G.711a; G.711Mu; G726; AAC

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception

    Network

    Network

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Protocol

    IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

    User/Host

    20 (Total bandwidth: 64 M)

    Storage

    Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 G); NAS

    Browser

    IE: IE8, IE9 and IE11
    Chrome
    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Phone

    IOS; Android

    Certification

    Certification

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: 5mA 3V–5V DC

    Alarm Output

    1 channel out: 300mA 12V DC

    Power

    Power Supply

    12V DC/PoE

    Power Consumption

    Basic power consumption: 3.7W (12V DC); 4.7W (PoE)
    Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE)

    Environment

    Operating Conditions

    –30°C to +55°C (–22°F to +131°F)/Less than 95% RH

    Strorage Conditions

    –40°C to +60°C (–40°F to +140°F)

    Protection Grade

    IP67; IK10

    Structure

    Casing

    Metal

    Dimensions

    62.0 mm × Φ110.0 mm (2.44" × Φ4.3")

    Net Weight

    387 g (0.9 lb)

    Gross Weight

    502 g (1.1 lb)
