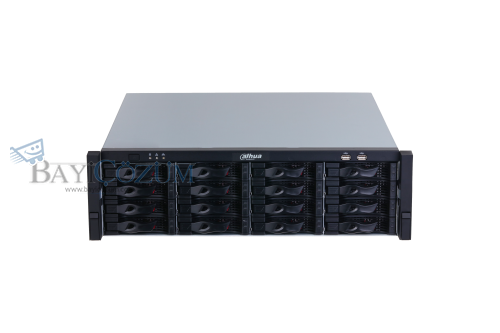

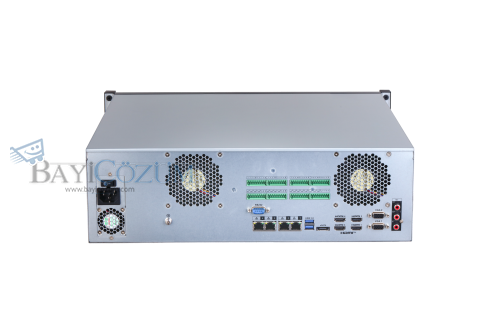

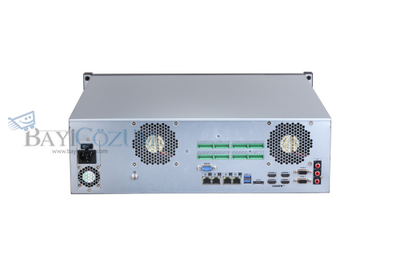

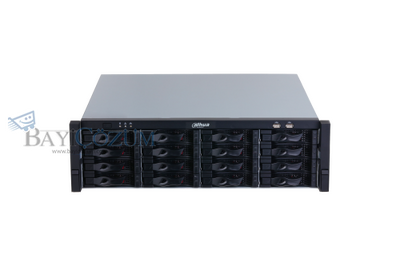

NVR616H-64-XI

Name: NVR616H-64-XI
Brand: Dahua
SKU: T1548
Availability: OutOfStock

Ürün Kodu : NVR616H-64-XI

Endüstriyel sınıf işlemci
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
1280/1280/1024 Mbps gelen/kayıt/giden bant genişliği.
64 kanala kadar AcuPick'i destekler.
AI by Recorder, SMD Plus, meta veriler,
ANPR, stereo analiz, ısı haritası ve kişi saymayı destekler.
N+M kümesini destekler, Raid 0/1/5/6/10, ISCSI,

Model NVR616RH-64-XI = Redundant Power


Ürün Özellikleri
Tavsiye Et
Resimler
Döküman

Main Processor																		Industrial-grade processor
Operating System																		Embedded Linux
Operating Interface																		Web, Local GUI
AI by Recorder																		Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; ANPR
AI by Camera																		Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat map; PPE detection
AcuPick AI by Camera + Recorder																		Max. 64-channel, 1 combined event per channel/s
IVS (Perimeter Protection)																		1. AI by Camera: Yes 2. AI by Recorder: Supports human and vehicle (attribute is not supported) Supports setting up to 10 intrusion and tripwire rules; record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, access controller, audio, buzzer, and log
Perimeter Performance AI by Recorder (Number of Channels)																		Simultaneous mode: 32 channels, 10 IVS rules for each channel Heterogeneous mode: 24 channels, 10 IVS rules for each channel Refer to the information on video output for details on the mode
Perimeter Performance of AI by Camera (Number of Channels)																		64 channels
Live (Perimeter Protection)																		1. Rule box and object detection : Configure rule box and object detection box 2. Intelligent panel: Displays objects categories (human or vehicle), event type, time, and cutout 3. Statistics: calculates the total number of people in Peopletotal and vehicles in Vehicle. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event), and exporting a single record
Playback (Perimeter Protection)																		1. Search conditions: Search for image by channel, time, event type, and target type 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) format 3. Snapshot database capacity: 1,500,000 entries
Face Detection																		1. AI by Camera: Yes 2. AI by Recorder: Yes Supports setting detection regions, record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, access controller, audio, buzzer, and log
Face Attributes																		6 attributes
Face Detection Performance of AI by Recorder (Number of Channels)																		Simultaneous mode: 8 channels (up to 12 face images/s each channel) Heterogeneous mode: 5 channels (up to 12 face images/s each channel) Refer to the information on video output for details on the mode
Face Detection Performance of AI by Camera (Number of Channels)																		64 channels
Live (Face Detection)																		1. Rule box and object detection box : Configure rule box and object detection box 2. Intelligent panel: Displays event type, time, and face snapshot 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database 4. Panel filtering: Filter by panel type and attribute
Playback (Face Detection)																		1. Search conditions: Search for image by channel, time, and face attribute 2. Search by image: Sets the similarity (60–100%) through face databases and external images to search for images, and supports setting secondary filters to also search by attributes. Sort results by date and similarity (top 1,000 images displayed). Upload 30 images to a single client and search for 10 images at a time 3. Functions: Supports recording playback (10 seconds before/after the event), fast adding snapshots to face database, and exporting search results to Excel, video and image format. 4. Database capacity: 1,500,000 entries
Search by Picture in the Face Database																		1. Sets the similarity (60–100%) through the face databases and external images to search images 2. Fast add face images from the search results to the face database
Search by Picture in History Database																		1. Sets the similarity (60–100%) through face databases and external images to search images, and support secondary filtration by attributes 2. Sort results by date and similarity (top 1,000 images displayed) 3. Upload 50 images on single client and search 10 images at a time 4. Supports recording playback (10 seconds before/after the event) and exporting; quickly add to database
Face Database Management																		1. Import method: Imports face images through USB flash disk, PCAPP and web client (one by one or in batches) and the importing speed through local 49 images/s, the importing speed through web client 36 images/s. 2. Copy face images (one by one or in batches) to another face database 3. Face information: 7 attributes. Custom is also available 4. Image format: JPG, 4M per image, 100 × 100 to 3840 × 2160 pixels
Face Database Capacity																		Up to 40 face databases with 300,000 images, with a total capacity of 48 G.
Face Recognition																		1. Recognition mode: FD (by camera) + FR (by camera); FD (by camera) + FR (by recorder); FD (by recorder) + FR (by recorder) 2. AI by Camera: Yes 3. AI by Recorder: Yes Functions: Ordinary/stranger mode; arming multiple face databases and setting separate similarity threshold Sends alarm messages in the client when the similarity threshold is reached or not reached. Support record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, and email.
Face Recognition Performance of AI by Recorder (Number of Channels)																		Simultaneous mode: 32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder),image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s Refer to the information on video output for details on the mode
Face Recognition Performance of AI by Camera (Number of Channels)																		64 channels
Live (Face Recognition)																		1. Detection box: Can be enabled and disabled; the rule box color can be changed according to face recognition results 2. Intelligent panel: Displays event type, time, face snapshot, similarity and database name 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database 4. Panel filtering: Filter by panel type and attribute
Playback (Face Recognition)																		1. Search condition: Search for images by channel, time, face attribute, similarity and recognition mode (stranger/normal mode) 2. Functions: Supports recording playback (10 seconds before/after the event), fast adding snapshots to face database, and exporting search results to Excel, video and image format 3. Database capacity: 1,500,000 entries
IVS																		1. AI by Camera: Supports 64 channels 2. AI by Recorder: Yes 3. Supports abandoned/missing object, parking detection, people gathering, fast moving, loitering detection, fence-crossing 4. Detection rule: Supports recording linkage, capture, local alarm output, audio, buzzer, and log
Live (general IVS analytics)																		1. Rule box and object detection: Configure rule box and object detection box.
Playback (general IVS analytics)																		1. Search conditions: Search for image by channels, type, and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event), exporting search results to excel, video and image format 3. Database capacity:1,500,000 entries
SMD Plus by Recorder																		32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera																		64 channels
Live (SMD Plus)																		Tracking box: Configure tracking box
Playback (SMD Plus)																		1. Search conditions: Search for image by channels, type (human, vehicle), and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event) and exporting search results of videos 3. Database capacity: 100,000 entries
Metadata Performance of AI by Recorder (Number of Channels)																		8 channels, 23 attributes extraction.
Metadata Performance of AI by Camera (Number of Channels)																		64 channels
People Detection																		1. AI by Camera: Yes 2. AI by Recorder: Yes Supports setting detection region and object size; record linkage, log, and snapshot cannot be configured by default.
People Attributes																		9 human body attributes
Live (People Detection)																		1. Rule box and object detection : Configure rule box and object detection box. 2. Intelligent panel: Displays event type, time, and human body snapshot 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Peopletotal. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database 4. Panel filtering: Filter by panel type and attribute
Playback (People Detection)																		1. Search condition: Search for images by channel, time and human body attributes 2. Function: Fast add images in the human body panel to the list database; supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format
Motor Vehicle Detection																		1. AI by Camera: Yes 2. AI by Recorder: Yes Supports setting detection region and object size; record linkage, log, and snapshot cannot be configured by default.
Motor Vehicle Attributes																		9 attributes
Live (Motor Vehicle Detection)																		1. Rule box and object detection: Configure rule box and object detection box 2. Intelligent panel: Displays event type, time, and vehicle body cutout, and plate cutout 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Vehicletotal. It also displays up to 50 snapshot records; supports recording playback (10 seconds before/after the event) and exporting 4. Panel filtering: Filter by panel type and attribute
Playback (Motor Vehicle Detection)																		1. Search condition: Search for images by channel, time and motor vehicle attributes. 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results as Excel, video and image (cutout and panoramic) format
Non-motor Vehicle Detection																		1. AI by Camera: Yes 2. AI by Recorder: Yes Set detection region and object size; record linkage, log, and snapshot cannot be configured by default
Non-motor Vehicle Attributes																		4 attributes
Live (Non-motor Vehicle)																		1. Rule box and object detection : Configure rule box and object detection box 2. Intelligent panel: Displays event type, time, and vehicle body cutout 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Nonmotortotal. It also displays up to 50 snapshot records; supports recording playback (10 seconds before/after the event) and exporting 4. Panel filtering: Filter by panel type and attribute
Playback (Non-motor Vehicle)																		1. Search condition: Search for image by channel, time and non-motor vehicle attributes 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) format 3. Database capacity: 1,500,000 entries
Vehicle Recognition																		1. AI by Camera:Yes 2. AI by Recorder: No
Vehicle License Plate Comparison																		1. ANPR by Camera+ License Plate Comparison by Recorder 2. Functions: Deploys multiple vehicle license plate databases, alarm prompts in client when plate number is consistent with the license plate databases (blocklist/allowlist); Support record linkage, snapshot (panorama), local external alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, and email
ANPR by Camera (Number of Channels)																		64 channels
License Plate Database Management																		1. Import method: Import a single license plate after exporting the Excel template to fill in the license plate information 2. License plate information: Country/region, plate number, name, vehicle logo, driver's license, vehicle color, plate color, mobile phone, email, and address
License Plate Database Capacity																		1. Up to 20,000 plate numbers. 2. Blocklist and allowlist
Live (Vehicle License Plate Comparison)																		1. Detection box: Can be enabled and disabled. 2. Intelligent panel: Displays event type, time, plate No., and plate cutout. 3. Statistics: calculates vehicle in Vehicle and supports filtering by blocklist and allowlist; It also displays up to 50 snapshot records; supports recording playback (10 seconds before/after the event), and exporting a single record. 4. Panel filtering: Filter by panel type and attribute
Playback (Vehicle License Plate Comparison)																		1. Search condition: Search for images by plate number, vehicle logo, vehicle model, vehicle color, and plate color 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) formats 3. Database capacity: 1,500,000 entries
Access Channel																		64 channels
Network Bandwidth																		AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing
Resolution																		32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Decoding Capability																		AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps；64-channel D1@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps； 64-channel D1@30 fps
Video Output																		2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (simultaneously outputs video sources for all the HDMI1-4 and VGA1-2 ports) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs heterogeneous video sources for HDMI1–4) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p
Multi-screen Display																		Main Screen: 1/4/8/9/16/25/36/64 Sub Screen: 1/4/8/9/16/25/36
Third-party Camera Access																		ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Compression																		Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression																		G.711a; G.711u; PCM; G726
Network Protocol																		HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration；iSCSI
Mobile Phone Access																		iOS; Android
Interoperability																		ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
Browser																		Chrome; IE; Safari; Edge; Firefox
Network Mode																		Multi-address; load balance; fault tolerance
Multi-channel Playback																		Up to 16 channels
Record Mode																		General, motion detection; intelligent; alarm; POS
Backup Method																		USB device and network
Playback Mode																		Instant playback; general playback; event playback; tag playback; smart playback
Disk Group																		Yes
RAID																		RAID 0/1/5/6/10
Hot Swapping																		Yes
General Alarm																		Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
Anomaly Alarm																		Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection
Intelligent Alarm																		Face detection; face and body detection; face recognition; perimeter protection; SMD; video metadata; stereo analysis, crowd distribution; ; ANPR; heat map
Alarm Linkage																		Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Audio Input																		1-channel RCA
Audio Output																		2-channel RCA
Alarm Input																		32 channels
Alarm Output																		16 channels
Disk Interface																		16 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
eSATA																		1
RS-232																		1
RS-485																		2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication)
USB																		4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI																		4
VGA																		2
Network Port																		4 (10/100/2500 Mbps Ethernet port, RJ-45)
Power Supply																		100–240 VAC, 50±2% Hz Model NVR616RH-64-XI = Redundant Power
Power Consumption																		<25 W (without HDD)
Net Weight																		11.95 kg (26.35 lb)
Gross Weight																		16.14 kg (35.58 lb)
Product Dimensions																		485.0 mm × 508.3 mm × 133.2 mm(19.09" × 20.01" × 5.24") (W × D × H)
Packaging Dimensions																		634.0 mm × 709.0 mm × 429.0 mm(24.96" × 27.91" × 16.89") (W × D × H)
Operating Temperature																		–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature																		–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity																		10%–93% (RH), non-condensing
Storage Humidity																		30%–85% (RH), non-condensing
Operating Altitude																		3,000 m (9,842.52 ft)
Installation																		Rack or desktop
Certifications																		Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
